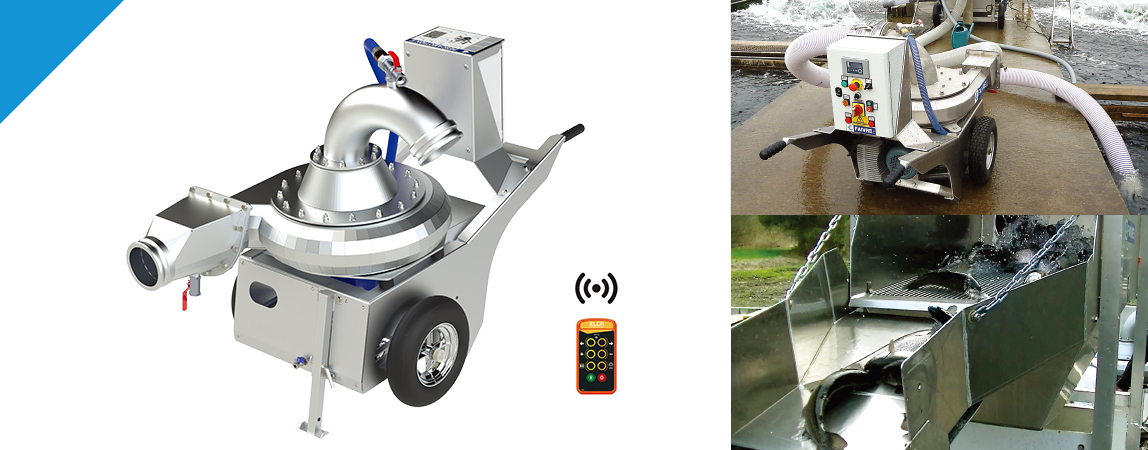

Fish Bump

Application & Features

1. High capacity up to 20 tons/hour；
2. For fish up to 700g* (Salmonids)；
3. Total dynamic head : 12m；
4. Light and handy : 202kg - 440lbs；
5. Remote control as option (200m - 650 ft)；
6. New "Auto stop" priming system；
7. Free maintenance with "Direct drive system" pump；
8. Pump housing in stainless steel 316L (ready to use in sea water)

Specifications

Model		PESCAMOTION 6 Plus
Main Drive Motor		3kW 400V 3ph 50Hz
Main Drive Motor Control		Frequency Variator
Prime Drive Motor		0.3kW 400V 3ph 50Hz
Inlet Ø		(152mm) 6 in male camlock
Outlet Ø		(152mm) 6 in male camlock
Total Dynamic Head		12m ( 3m suction and 9m discharge)
Fish Size Max.		700g* Trouts/Salmon
Pump Speed		200 to 540 rpm
Water Fow Max. (470 rpm, 2m vertical head discharge)		232 m³/h - 1021 gpm
Dimensions (m)		1.76 L x 0.86 l x 1.06 H 70in L x 34in W x 42in H
Weight		202 kg - 445 lbs
Reference		PH0602
