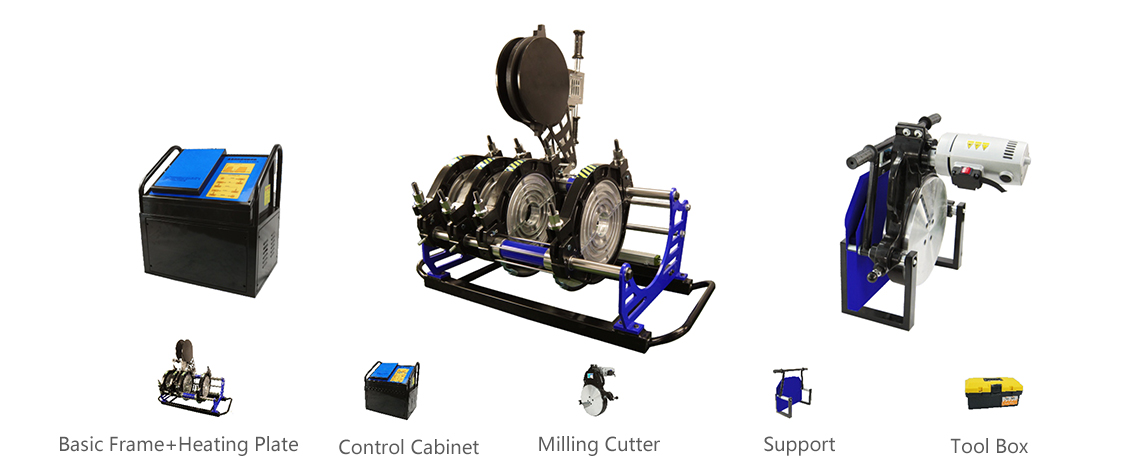

Full-automatic Hydraulic Butt Fusion Machine

Application & Features

1. Combination design of the electric and hydraulic unit, easy installation;
2. Use explosion-proof sockets to make operation safer;
3. More robust and durable with 5 cm thickness aluminum clamps;
4. Independent temperature control of the heating plate and PTFE surface coating;
5. Cutting is more stable by use of gear transmission;
6. Independent dual channel timer can record the two periods of heat and cooling, timing alarm over to convenient the user;
7. Big dial, high-precision shock pressure, low temperature resistance, table read mathematical clearly.

Product Features

Model 450
Welding Range(mm) 280-----450
Size Tolerance ≤0.5mm
Temperature Range 0-300℃
Temperature Tolerance ±3℃
Working Pressure 0-6.3Mpa

Control Method

Automatic
Total Power 8.2KW/220V
Heating Plate Power 5.2KW/220V
Hydraulic Unit Power 1.5KW/220V
Milling Cutter Power 1.5KW/220V
