Semi-automatic Hydraulic Butt Fusion Machine

Application & Features

1. Combination design of the electric and hydraulic unit, easy installation;
2. Use explosion-proof sockets to make operation safer;
3. More robust and durable with 5 cm thickness aluminum clamps;
4. Independent temperature control of the heating plate and PTFE surface coating;
5. Cutting is more stable by use of gear transmission;
6. Independent dual channel timer can record the two periods of heat and cooling, timing alarm over to convenient the user;
7. Big dial, high-precision shock pressure, low temperature resistance, table read mathematical clearly.

Major Parameter

Model  450

Welding Range(mm)

280,315,355,400,450
Heating Plate Power 50kw/380v
Milling Cutter Power 1.5kw/380v
Hydraulic Unit Power 1.1kw/380v
Net Weight 327kg
Gross Weight 380kg
Package Size(mm) 128×90×99      74×54×120     69×51×49
Volume 1.64/1.8m³

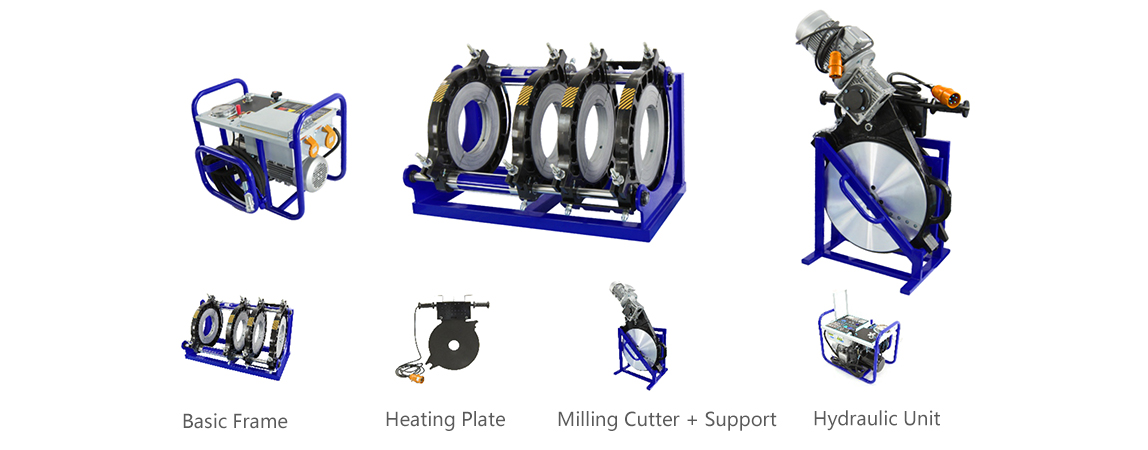

Size(cm)/Weight(kg) Basic Frame 120×74×79          180kg
Heating Plate 71×10×70            16kg
Milling Cutter 63×16×98            59kg
Support 50×50×60            13kg
Hydraulic Unit 58×46×45            49kg
