Aquaculture Mooring Chain

AQUACULTURE MOORNING CHAIN

The comprehensive performance of deep-sea aquaculture mooring chains is higher than that of ordinary marine anchor chains. Through technical R&D and design, Haosail has optimised the material division and production process to meet the requirements of deep-sea aquaculture mooring use. The seawater corrosion resistance service life of the deep-sea aquaculture mooring chains can reach more than 5 years; The yield strength, tensile strength and effective load capacity are increased by more than 20%; The weight of the mooring system is effectively reduced by 30%, which improves the safety of the system and reduces the equipment costs at the same time.

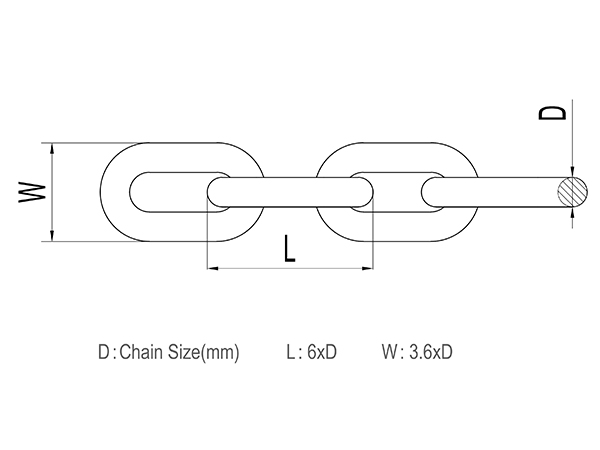

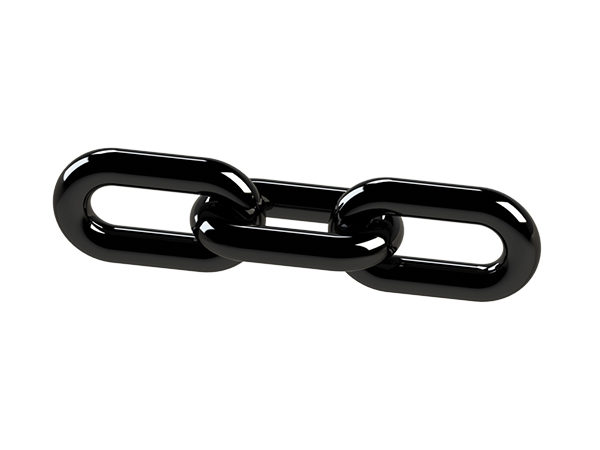

Studless Anchor Chain

Chain Size(mm)	Proof Test Load (kN)	Breaking Test Load (kN)	Weight (kg/m)
16	216	274	5.56
17.5	221	281	6.49
19	261	331	7.92
20.5	303	385	8.33
22	349	444	9.62
24	416	528	12.43
26	488	620	13.45
28	566	719	15.53
30	650	825	17.85
32	739	939	20.35
34	835	1065	24.42
36	936	1189	25.74
38	1043	1319	28.69
40	1155	1456	31.61
42	1274	1599	34.88
44	1398	1748	40.41
46	1528	1903	41.89
48	1664	2064	45.68
50	1805	2230	49.47
52	1952	2403	54.02
54	2105	2581	59.93
56	2264	2764	62.40
58	2429	2953	67.07
60	2599	3147	71.76
62	2775	3347	76.42
64	2957	3552	83.58
66	3145	3762	87.20
68	3339	3977	92.83
70	3538	4196	98.10
73	3990	4535	106.90
76	4300	4885	115.65

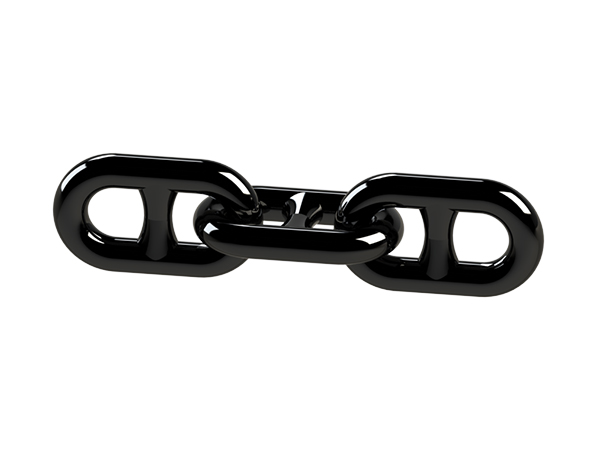

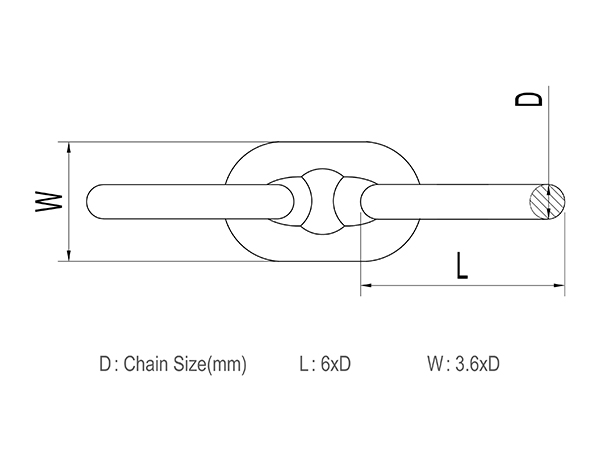

Studlink Anchor Chain

Chain Size(mm)	Proof Test Load (kN)	Breaking Test Load (kN)	Weight (kg/m)
16	216	274	5.61
17.5	256	325	6.71
19	301	382	7.91
20.5	349	443	9.2
22	401	509	10.6
24	476	605	12.61
26	556	706	14.8
28	642	815	17.17
30	735	933	19.71
32	833	1058	22.43
34	937	1065	25.32
36	1050	1189	28.38
38	1160	1319	31.62
40	1280	1456	35.04
42	1400	1599	38.63
44	1540	1748	42.4
46	1680	1903	46.34
48	1810	2064	50.45
50	1960	2230	54.75
52	2110	2403	59.22
54	2270	2581	63.86
56	2430	2764	68.68
58	2600	2953	73.67
60	2770	3147	78.84
62	2940	3347	84.18
64	3130	3552	89.70
66	3300	3762	95.4
68	3500	3977	101.3
70	3690	4196	107.3
73	3990	4535	116.71
76	4300	4885	126.5
