Aquaculture Mooring Rope

ULTRA HIGH MOLECULAR WEIGHT POLYETHYLENE ROPE

Ultra high molecular weight polyethylene(UHMW-PE) is polyethylene with a molecular weight of more than 1 million. Compared with other materials, it has the advantages of superb abrasion resistance, super high breaking tension, long service life and self-lubrication. The outer layer is made of polyester braided sheath, which enables it to filter out particles with diameter greater than 5μm from entering the rope in deep water and high pressure environments, and avoid shear damage to the rope body from particles.

Size		Weight		Breaking Strength ISO		Breaking Strength MEG4
Mm Dia.	Inch Cir.	g/m	Kg/220m	KN	ton	KN	ton
40	5	940	206.8	1140	116.3	1030	105.1
44	2005-1/2	1150	253.0	1380	140.2	1240	126.6
48	6	1360	299.2	1610	164.3	1450	148.0
52	2006-1/2	1600	352.0	1920	195.9	1730	176.5
56	7	1850	407.0	2190	223.5	1970	201.0
60	2007-1/2	2120	466.4	2520	257.1	2270	231.6
64	8	2400	528.0	2880	293.9	2590	264.3
68	2008-1/2	2720	598.4	3260	332.7	2930	299.0
72	9	3070	675.4	3630	370.4	3270	333.7
76	2009-1/2	3400	748.0	4020	410.2	3620	369.4
80	10	3750	825.0	4510	460.2	4060	414.3
84	2010-1/2	4125	907.5	4930	503.1	4440	543.1
88	11	4500	990.0	5350	545.9	4820	491.8
92	2011-1/2	4900	1078.0	5815	593.4	5235	534.2
96	12	5300	1166.0	6280	640.8	5650	576.5

POLYESTER AND POLYPROPYLENE DOUBLE BRAIDED ROPE

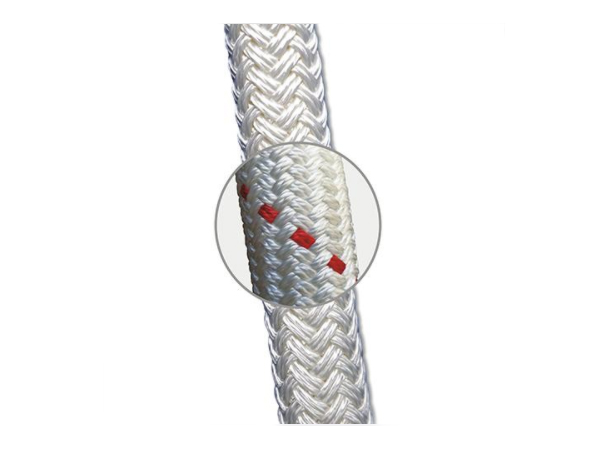

Polyester polypropylene double-layer braided rope is made of high-performance polypropylene and polyester fiber mixed into a high-performance rope. It perfectly combines the advantages of the two materials and has the characteristics of high strength, high wear resistance, seawater resistance, chemical corrosion and low elongation. Our company adopts special mixed structure and technology, and the outer sheath is added for the rope to improve the wear resistance of the product. In the braiding process of the finished rope, the pre stretching technology is used to effectively reduce the residual deformation and prolong the service life of the rope.

Size		Weight		Breaking Strength ISO		Breaking Strength MEG4
Mm Dia.	Inch Cir.	g/m	Kg/220m	KN	ton	KN	ton
40	5	1050	231	315	32.1	283	28.9
44	5-1/2	1282	282	375	38.3	338	34.5
48	6	1509	332	433	44.2	390	39.8
52	6-1/2	1732	381	511	52.1	460	46.9
56	7	2091	460	581	59.3	523	53.4
60	7-1/2	2350	517	659	67.2	593	60.5
64	8	2690	574	756	77.1	680	69.4
68	8-1/2	2960	651	844	86.1	759	77.5
72	9	3310	728	932	95.1	839	85.6
76	9-1/2	3696	813	1031	105.2	928	94.7
80	10	4082	898	1130	115.3	1017	103.8
84	10-1/2	4471	983.5	1250	127.6	1125	114.8
88	11	4895	1069	1370	139.8	1233	125.8
92	11-1/2	5350	1167	1500	153.1	1350	137.7
96	12	5750	1265	1630	166.3	1476	149.7
100	12-1/2	6275	1380	1750	178.6	1575	160.7
