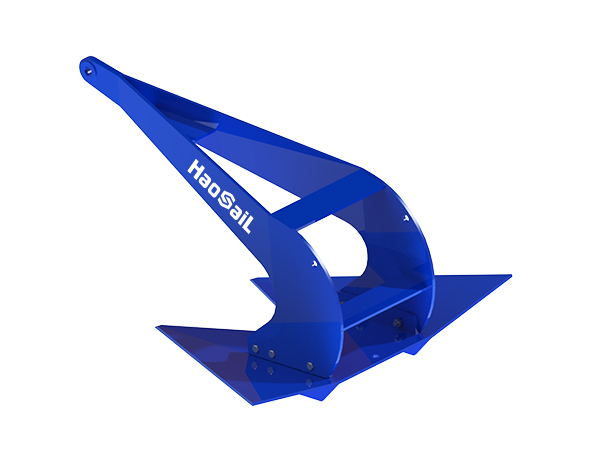

HSSA Stingray Anchor



       The super high holding power(SHHP) anchor developed by Haosail is made of high strength steel plate, which can be widely used in sand soil, sand, clay, ooze and reef geological seabed. The grasping coefficient is 1.5 times that of the ordinary anchor, and the grasping force is three times that of the ordinary anchor. The implementation of control is simple, more suitable for the use of deep-sea aquaculture mooring requirements.

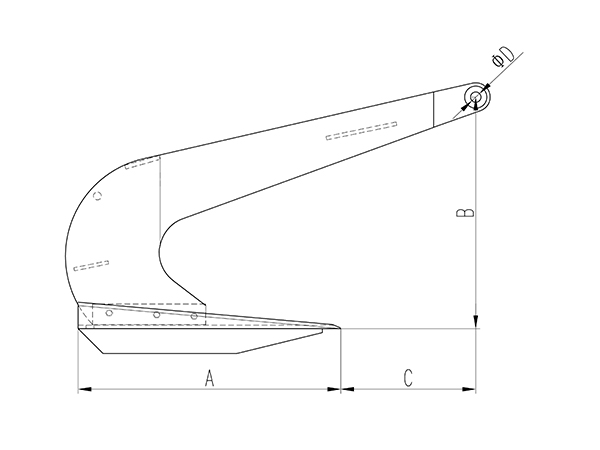

Nominal Weight(kg) Dimensions (in mm)
A B C ΦD
100 1180 691 401 25
150 1271 742 432 32
250 1530 895 519 39
500 2045 1190 694 55
750 2243 1311 761 62
1000 2516 1470 854 66
1500 2896 1691 983 66
2000 3360 1954 1140 72
3000 3719 2160 1312 90
5000 4291 2504 1456 90

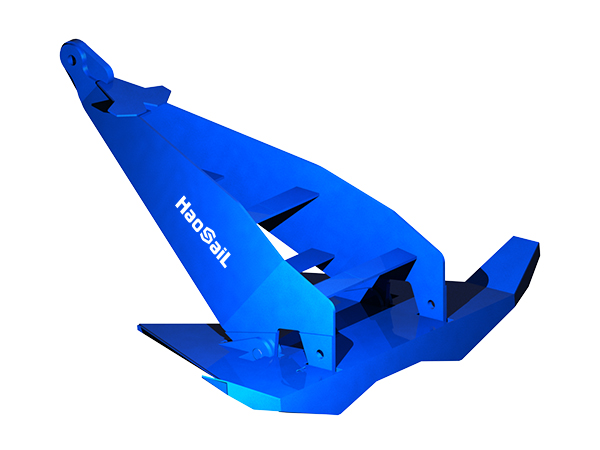

HSMA Stingray Anchor



       As a super high holding power anchor, it is a deep penetration anchor with a plough handle.It is welded by high strength steel plate. Its grip coefficient can reach 33-55 times of the weight of the anchor itself. It has two angles of 32 degrees and 55 degrees. It is widely used in sand, gravel soil, clay, soft soil and other geology, suitable for semi-permanent and permanent mooring.This anchor design as a split structure, with anchor head and anchor shank seperated for easy transportation and installation.
Through technical research and development and design, Haosail optimizes material separation and product production process, which is more suitable for the use of deep-sea aquaculture mooring .

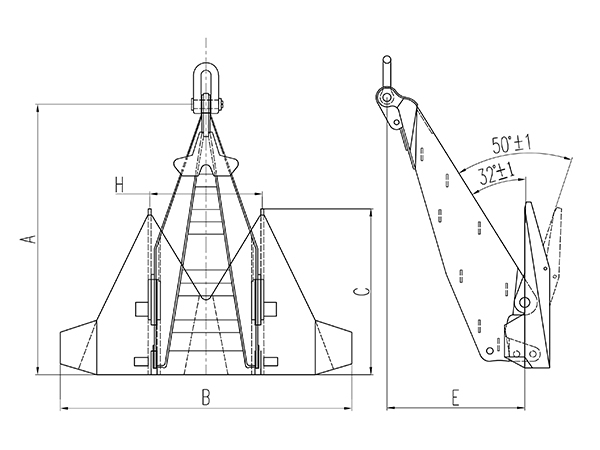

Nominal Weight(kg) Dimensions (mm)
A B C E H
1000 2580 2780 1582 1314 1074
1500 2954 3184 1812 1505 1230
3000 3721 4011 2283 1896 1550
5000 4412 4756 2707 2248 1837
7000 4910 5290 3011 2500 2045
8000 5161 5563 3166 2629 2149
10000 5559 5992 3410 2832 2315

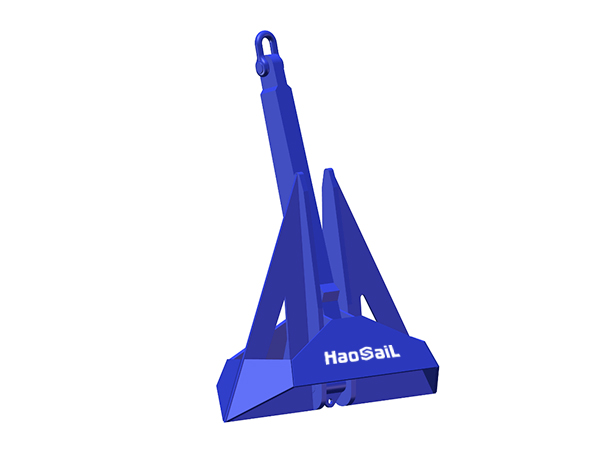

HSDA Delta Anchor



       HSDA Delta Anchor is a kind of high holding power made of steel plate, its head can be rotated in the range of 0-35 degrees for easy to pull in and out. Its grasping ratio is more than 15 in the silt seabed.It is mainly suitable for clay and muddy seabed, and not suitable for sand seabed.

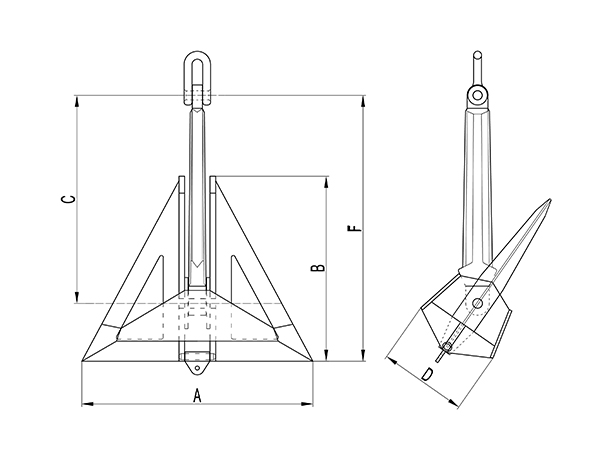

Nominal Weight(kg) Dimensions (mm)
A B C D F
300 1310 1040 1180 495 1550
500 1550 1240 1400 585 1845
1000 1960 1560 1755 740 2320
1500 2250 1800 2025 840 2660
2000 2470 2000 2250 930 2960
3000 2830 2285 2595 1070 3380
4000 3180 2560 2880 1190 3790
5000 3300 2660 2995 1260 3945
6000 3560 2884 3245 1300 4269
7000 3750 2995 3365 1405 4440
9000 4120 3280 3690 1540 4860
10000 4270 3400 3825 1600 5040
