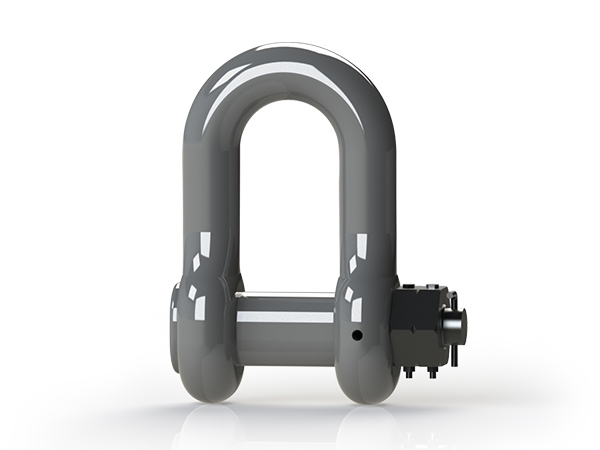

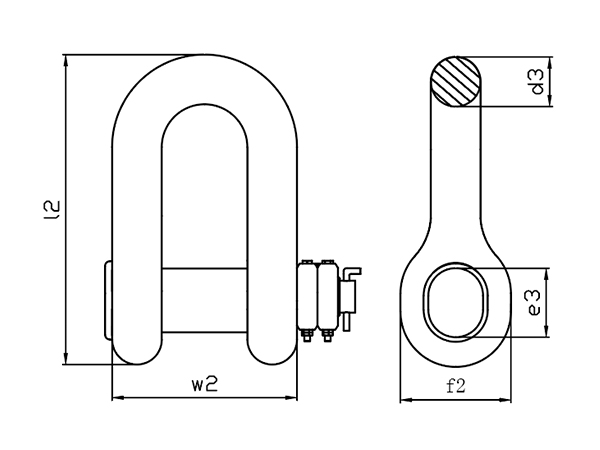

LTM SHACKLE



      Aquaculture LTM shackles are specially used for the connection between chains. The raw material of special steel increases the resistance to seawater corrosion and improves the tensile strength. The added ouble nuts and bolt design at the end of the shackle horizontal pin facilitate the connection, assembly and disassembly; and increase the security of the connection at the same time to avoid the horizontal pin falling off. It's suitable for permanent aquaculture mooring chain connection

Nominal Size

d(mm)

 d3 l2 w3 e3 f2

Weight(kg)
16 22 139 83 29 50 1.6
17.5 25 152 91 32 54 2
19 27 165 99 34 59 2.6
20.5 29 178 107 37 64 3.2
22 31 191 114 40 68 4.1
24 34 209 125 43 74 5.2
26 36 226 135 46 81 6.7
28 39 244 146 50 87 8.2
30 42 261 156 54 93 10
32 45 278 166 58 99 12
34 48 296 177 61 105 14.5
36 50 313 187 65 112 17
38 53 331 198 69 118 20
40 56 348 208 72 124 23
42 59 365 218 76 130 26.6
44 62 385 229 79 136 30
46 64 400 239 83 143 35
48 67 418 250 86 149 38.8
50 70 435 260 90 155 47.5
52 73 452 270 93 161 53.4
54 76 470 281 97 167 56.5
56 78 487 291 101 174 66.2
58 81 505 302 104 180 73.5
60 84 522 312 108 186 81.4
62 87 539 322 112 192 90.6
64 92 557 333 115 198 101
66 92 574 343 119 205 105
68 95 592 354 122 211 108
70 98 609 364 126 217 132
73 102 635 380 131 226 145
76 106 661 395 137 236 153

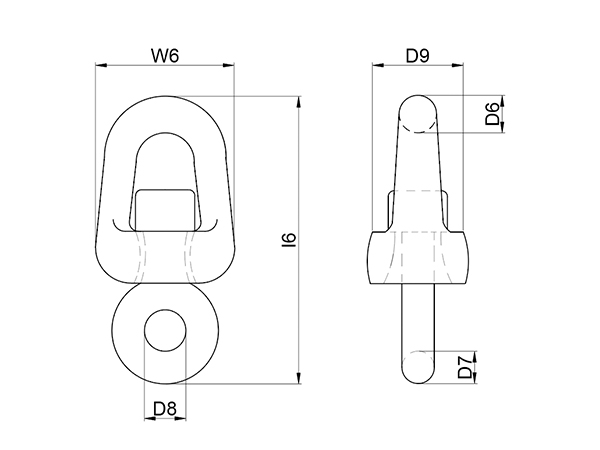

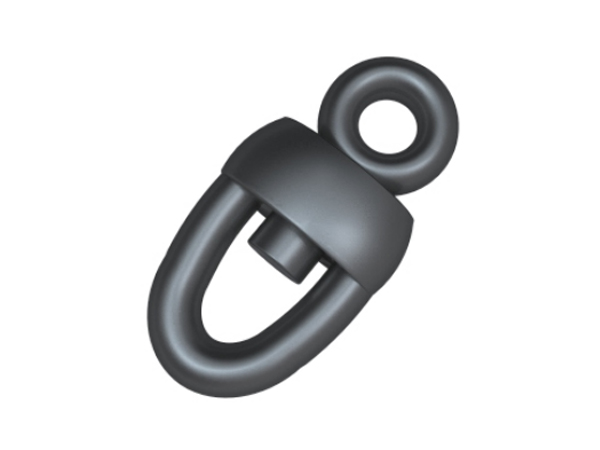

SWIVEL



       As a part of the anchor chain, the main function of the swivel is to prevent excessive twisting of the anchor chain in the process of anchoring. The ring bolt of the swivel should be oriented towards the middle chain in order to reduce friction. The ring bolt and its body are on the same central line, and can rotate freely. It can not only transfer torque, but also alleviate the impact of wind and waves on the anchor chain. Therefore, it is an indispensable anchor chain fittings for connecting and fixing all kinds of ships, buoys, barges and other facilities.

Nominal Size

d(mm)

 D6 l6 W6 D7 D8 D9

Weight(kg)
16 19 155 75 18 22 54 1.1
17.5 21 170 82 19 25 60 1.8
19 23 184 89 21 27 65 2.4
20.5 25 199 96 23 29 70 3
22 26 213 103 24 31 75 3.6
24 29 233 113 26 34 82 4.7
26 31 252 122 29 36 88 6
28 34 272 132 31 39 95 7.3
30 36 291 141 33 42 102 9.1
32 38 310 150 35 45 109 10.5
34 41 330 160 37 48 116 13.1
36 43 349 169 40 50 122 16
38 46 369 179 42 53 129 18.5
40 48 388 188 44 56 136 20.5
42 50 407 197 46 59 143 25
44 53 427 207 48 62 150 28
46 55 446 216 51 64 156 31
48 58 466 226 53 67 163 35
50 60 485 235 55 70 170 42
52 62 504 244 57 73 177 48
54 65 524 254 59 76 184 53
56 67 543 263 62 78 190 60
58 70 563 273 64 81 197 65
60 72 582 282 66 84 204 71
62 74 601 291 68 87 211 79
64 77 621 301 7 90 218 87
66 79 640 310 73 92 224 95
68 82 660 320 75 95 231 107
70 84 679 329 77 98 236 117
73 88 708 343 80 102 248 132
76 91 737 357 84 106 258 145

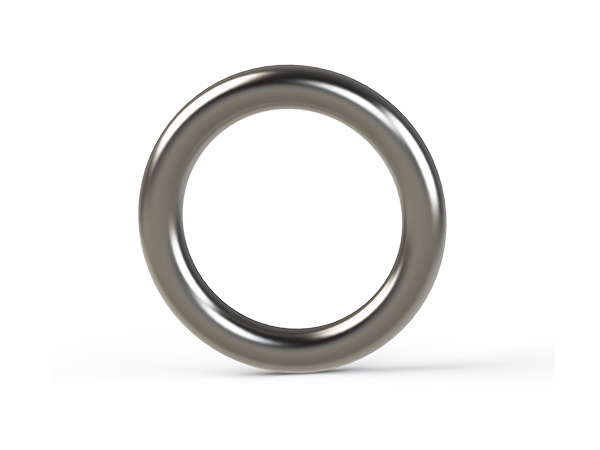

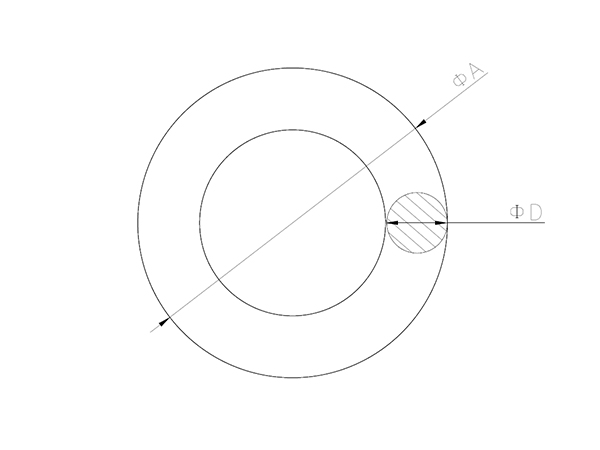

RING



        Aquaculture connectiNG ring is used for conversion and connection of anchor chain from single point to multi-point. It is forged from special material as a whole which improves tensile strength and connects multiple anchor chains at the same time. It is an important equipment to realize safe mooring.

Nominal Chain Size

(mm)

 Diameter
（mm）		 Outer
Diameter
(mm)		 Weight
(kg)		 Minimum Break Load (t) Proof Load (t)
19 30 152 2.18 30.7 21.5
25 40 200 4.96 40 30
32 51 256 10.39 84.9 59.4
40 64 320 20.31 131 91.4
50 80 400 39.67 200 140
56 89.6 448 55.77 248 174
64 102 512 83.20 319 223
76 121 608 139.3 438 307

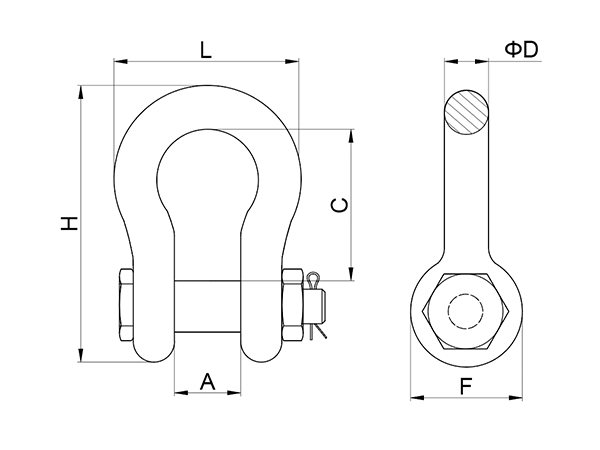

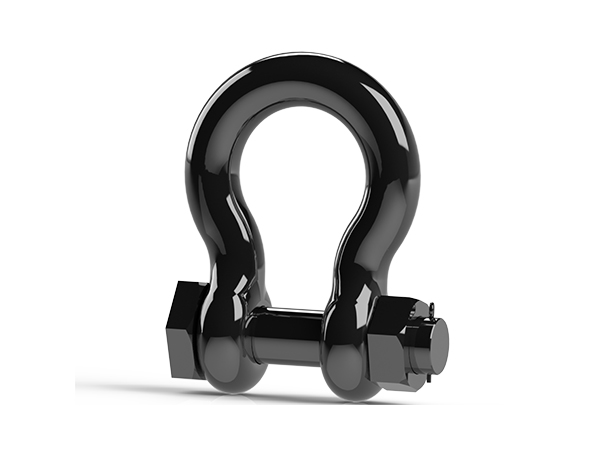

G2130 SHACKLE



       G2130 shackle is made of high manganese steel forged as a whole and the surface galvanized treatment can improve the corrosion life of seawater. The end of the pin is equipped with a safety pin to increase the overall safety which is widely used for breeding mooring line connection and matching. ……


Nominal Size Dimensions
（mm）		 Working Load Limit Weight
（in.） A C D F H L t kg
3/16 9.65 22.4 4.81 14.2 27.3 24.9 1/3 0.03
1/4 11.9 28.7 6.35 15.5 46.7 32.5 1/2 0.05
5/16 13.5 31 7.85 19.1 53 37.3 3/4 0.1
3/8 16.8 36.6 9.65 23.1 63 45.2 1 0.15
7/16 19.1 42.9 11.2 26.9 74 51.5 1-1/2 0.22
1/2 20.6 47.8 12.7 30.2 83 58.5 2 0.36
5/8 26.9 60.5 16 38.1 106 74.5 3-1/4 0.76
3/4 31.8 71.5 19.1 46 126 89 4-3/4 1.23
7/8 36.6 84 22.4 53 148 102 6-1/2 1.79
1 42.9 95.5 25.4 60.5 167 119 8-1/2 2.57
1-1/8 46 108 28.7 68.5 190 131 9-1/2 3.57
1-1/4 51.5 119 31.8 76 210 146 12 5.31
1-3/8 57 133 35.1 84 233 162 13-1/2 7.18
1-1/2 60.5 146 38.1 92 254 175 17 9.43
1-3/4 73 178 44.5 106 313 225 25 15.4
2 82.5 197 51 122 348 253 35 23.7
2-1/2 105 267 66.5 145 453 327 55 44.6
3 127 330 76 165 546 365 85 70
3-1/2 133 372 92 203 629 419 120 120
4 140 368 104 229 653 468 150 153

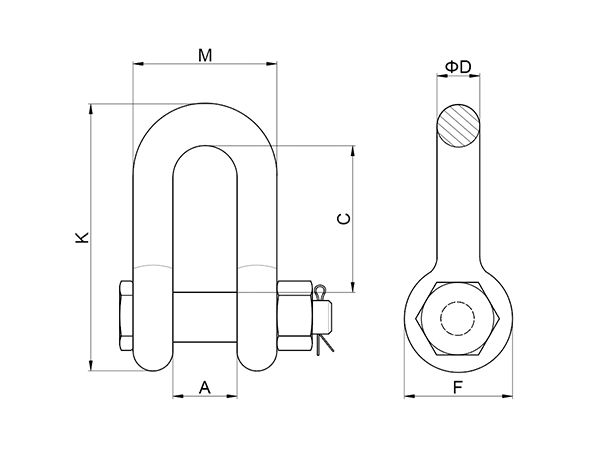

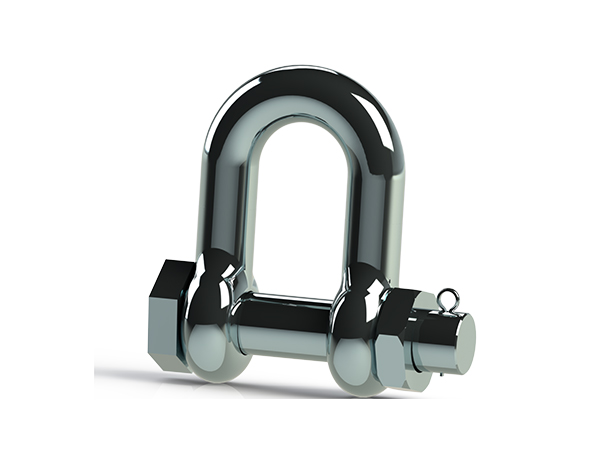

G2150 SHACKLE



       The G2150 shackle is integrally forged with high-performance high manganese steel, and its tensile strength is 1.5 times higher than that of ordinary shackle. Surface galvanizing treatment can improve the service life of seawater corrosion resistance. The end of the pin is equipped with a safety pin to increase the overall safety. It is widely used for the connection and matching of aquaculture mooring ropes.





Nominal Size Dimensions
（mm）		 Working Load Limit Weight
（in.） A C D F K M t kg
1/4 11.9 19.1 6.35 15.5 40.4 24.9 1/2 0.06
5/16 13.5 25.4 7.85 19.1 48.5 29.5 3/4 0.1
3/8 16.8 31 9.65 23.1 58.5 35.8 1 0.15
7/16 19.1 36.1 11.2 26.9 67.5 41.1 1-1/2 0.22
1/2 20.6 41.4 12.7 30.2 77 46 2 0.34
5/8 26.9 51 16 38.1 95.5 58.5 3/-1/4 0.67
3/4 31.8 60.5 19.1 46 115 70 4-3/4 1.14
7/8 36.6 71.5 22.4 53 135 81 6-1/2 1.74
1 42.9 81 25.4 60.5 151 93.5 8-1/2 2.52
1-1/8 46 91 28.7 68.5 172 103 9-1/2 3.45
1-1/4 51.5 100 31.8 76 191 115 12 4.9
1-3/8 57 111 35.1 84 210 127 13-1/2 6.24
1-1/2 60.5 122 38.1 92 230 137 17 8.39
1-3/4 73 146 44.5 106 279 162 25 14.2
2 82.5 172 51 122 312 184 35 21.2
2-1/2 105 203 66.5 145 377 238 55 38.6
3 127 216 76 165 429 279 85 56

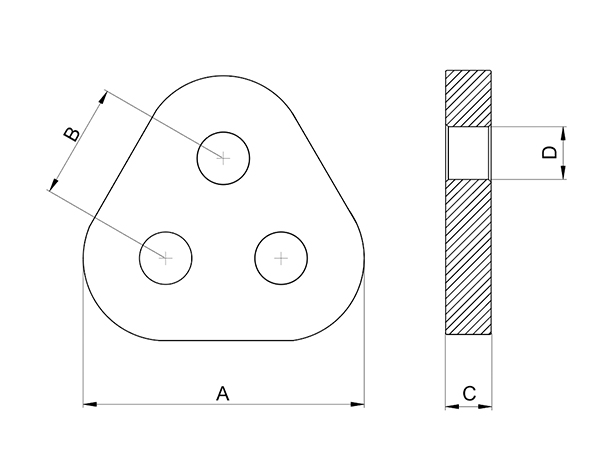

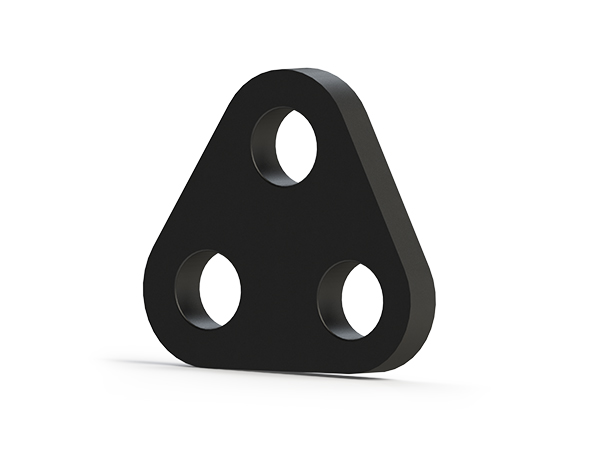

THREE EYE PLATE



        The three-eye plate is used for the connection between anchor chains and can connect three anchor chains at the same time. The body is integrally forged with special materials which improves the tensile strength.It is widely used for the connection and matching of aquaculture moorings.

Chain Size

(mm)

 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 Proof Load
(t)		 Breaking Load
(t)		 Weight
(kg)
38-46 320 168 50 76 81.2 106 13
48-56 360 184 60 88 127 181 25
58-38 430 225 80 102 190 287 50
70-73 506 266 90 120 270 404 81
76-80 550 290 90 130 313 472 96

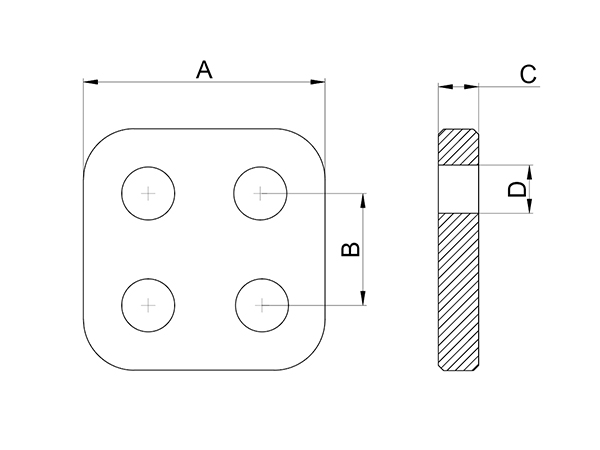

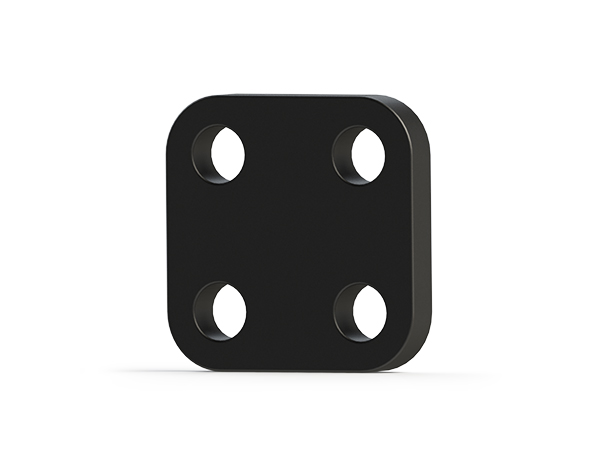

FOUR EYE PLATE



        The four-eye plate is used for the connection between anchor chains and can connect three anchor chains at the same time. The body is integrally forged with special materials which improves the tensile strength.It is widely used for the connection and matching of aquaculture moorings.

Chain Size

(mm)

 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 Proof Load
(t)		 Breaking Load
(t)		 Weight
(kg)
38-46 320 168 50 76 81.2 106 31
48-56 360 184 60 88 127 181 47
58-38 430 225 80 102 190 287 90
70-73 506 266 90 120 270 404 140
76-80 550 290 90 130 313 472 166
