Net Cage



       Liftable floating and submersible metal net cage,is composed of submersible deep-sea cage frame, metal fish net and lifting device that can be submerged in water, to form a cylindrical structur. We adopt the combination of lifting suspension cage and platform,to ensure the cage can withstand the impact of a category 12 typhoon.The characteristics of the net cage is that it can be submerged to a certain depth below the surface of the water before the advent of a strong typhoon, so as to avoid the impact of wind and waves.
       HDPE, lightweight high-strength alloy materials and other new materials are adopted in the structure. Computer control, various anticorrosive, anti fouling (attachments) and anti-aging technologies greatly improve the overall structural strength and flexibility of deep-sea aquaculture net cage, double the service life of the cage, highly reduce the daily maintenance and the cost of aquaculture in unit volume, and improve economic benefits.
The cage is with stable inside enviroment,large flow space, and closer to nature; provides fish with wide space of activities, high survival rate, fast growth, less disease, and good healing ability; supplies more natural bait,reduces artificial bait; Cultured fish are close to the wild one in size and meat quality. It expands the breeding capacity, and improves the production efficiency.
       At the same time, our company provides design,model selection,production, installation and other services for net cage in different size according to customer's fish species, different ocean enviroment and aquaculture volume requirement.

Net cage lifting diagram

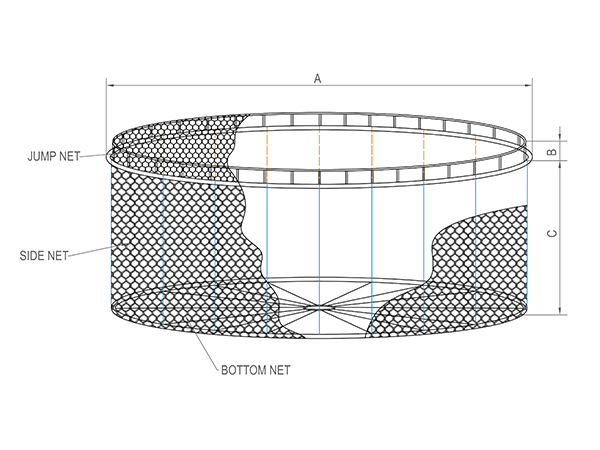

Net cage without top

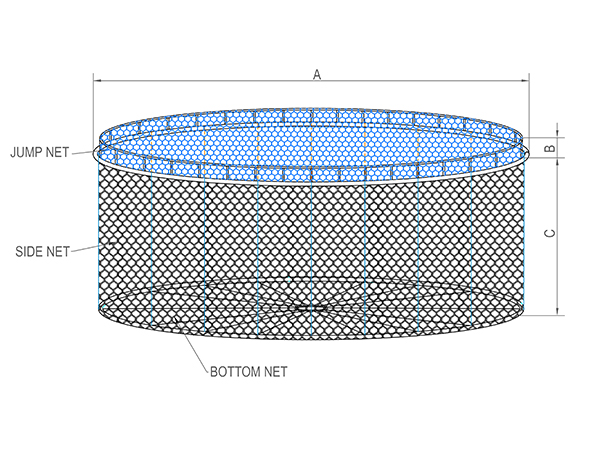

Net cage with top

Product Parameters

10,000 cubic meters of water

Aquaculture Volume

Diameter(m)

Depth(m)

Wire Diameter (mm)

Mesh(mm)

Metal Fish Net Net Weight/kg

(without top)

Metal Fish Net Net Weight/kg

(with top)

10,000 cubic 30m 15m 2 30X30 4239 5652
2.25 5362 7150
2.5 6613 8817
2.75 7991 10654
3 9517 12689
20,000 cubic meters of water
Aquaculture Volume Diameter(m) Depth(m) Wire Diameter (mm) Mesh(mm)

Metal Fish Net Net Weight/kg

(without top)

Metal Fish Net Net Weight/kg

(with top)

20,000 cubic 50m 10m 2 30X30 7065 10990
2.25 8937 13902
2.5 11021 17144
2.75 13318 20716
3 15861 24673
30,000 cubic meters of water
Aquaculture Volume Diameter(m) Depth(m) Wire Diameter (mm) Mesh(mm)

Metal Fish Net Net Weight/kg

(without top)

Metal Fish Net Net Weight/kg

(with top)

30,000 cubic 50m 15m 2 30X30 8635 12560
2.25 10923 15888
2.5 13471 19594
2.75 16277 23676
3 19386 28197

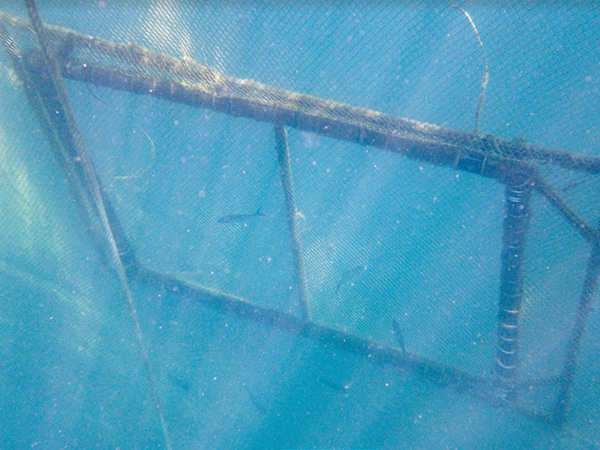

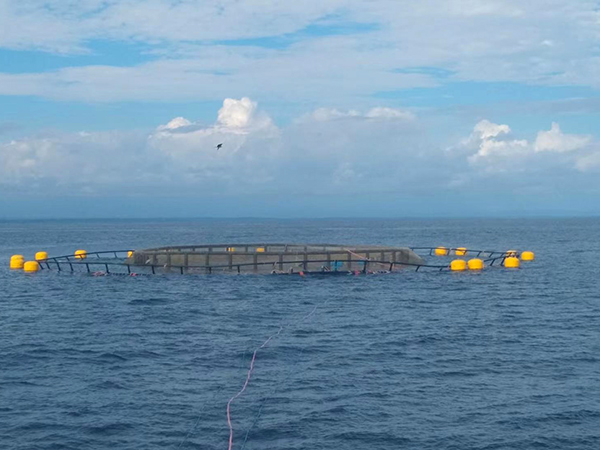

Application Scenarios
